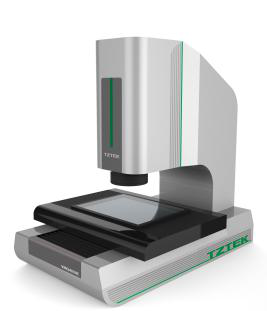

閃測影像儀 VMQ432
VMQ432影像儀是業內獨創的一款高效率影像儀。該影像儀是天準公司整合傳統影像儀優秀測量技術，結合先進的閃測理念而研發的一款精密測量產品。在繼承傳統自動影像儀的高精度、高穩定性等優勢的基礎上，集大視野、大景深、大行程于一體的創新技術，測量效率提升10倍以上。。
VMQ432 video measuring machine is unique in the industry a highly efficient video measuring machine. The machine is a traditional day must company integrating video measuring machine excellent measuring technology, combined with the advanced concept of instantaneous measurement and research and development of a precision measurement products. In inheriting the traditional automatic video measurement machine, on the basis of advantages such as high precision, high stability, large, large depth of field, large stroke in the integration of technology innovation. Measuring efficiency more than 10 times.
2 基本參數 Basic Parameter
|
天準影像測量儀 TZTEK Video Measuring Machine |
|
|||
|
型號 Model |
行程 Range |
外部尺寸External Size |
重量 Weight |
承重 Capacity |
|
VMQ432 |
450×300×200 |
1240×900×1880 |
430 |
25 |
|
測量精度 Accuracy |
XY軸* XY Axis |
最小顯示單位（μm） Min Display Unit |
鏡頭視野** Image field |
景深 Depth |
|
（5.0+L/200）μm /（2.0+L/200）μm |
0.1 |
Φ100 / 20 x 20 |
24 / 1.4 |
|
|
速度 Speed |
XY軸 XY Axis |
Z軸 Z Axis |
||
|
500mm/s |
100mm/s |
|||
|
工作環境 Operating Environment |
溫度Temperature：20℃±5℃ 濕度Humidity：30～80% |
|||
|
振動Vibration：＜0.002mm/s，＜15Hz |
||||
|
電源Power：220VAC，50Hz，single-phase，260W |
||||
*L表示測量長度，以毫米為單位
*L, the measured length in mm.
**鏡頭視野可選配Φ150mm/80mm×80mm，選配景深62mm/18mm，選配精度（11+L/200）μm/（6+L/200）μm
** FOV field: Φ150mm/80mm×80mm is optional, The Depth of Field: 62mm/18mm, Optional Accuracy：（11+L/200）μm /（6+L/200）μm
2 配置清單 Configuration List
|
序號 No. |
名稱 Name |
分項名稱 Description |
規格及主要技術參數 Technical Specifications |
|
1 |
機械本體 Mechanics |
主機 Machine |
影像測量系統, 三軸CNC控制 3-axis CNC video measuring machine |
|
2 |
機械結構 Structure |
三軸花崗巖主體結構，物理性能穩定 3-axis granite machines, high stability |
|
|
3 |
光柵尺 Scale |
Renishaw光柵尺，1.0μm分辨率 Renishaw scales，1.0μm resolution |
|
|
4 |
導軌 Guide |
HIWIN精密線性滑軌 HIWIN precision linear guide |
|
|
5 |
電機 Motor |
直流伺服電機 DC servomotor |
|
|
6 |
光學系統 Optical System |
攝像機 Camera |
400萬像素工業相機 4Megapixels industrial camera |
|
7 |
鏡頭 Lens
|
雙遠心鏡頭，Φ100 Double telecentric lens，Φ100
|
|
|
8 |
表面光 Surface |
2環4區白色LED冷光源（白色），各段獨立控制，256級亮度可調 2 ring, 4 zone LED cold light(White), each segment independently controlled, 256 brightness adjustable |
|
|
9 |
輪廓光 Profile |
遠心透過照明（綠色LED） Telecentric lighting (green LED) |
|
|
10 |
軟件系統 |
Vispec 測量軟件 Vispec Software |
VMQ版 |
|
11 |
電控系統 Control System |
天準®電控系統 TZTEK Control System |
VMQ版 |
|
12 |
附件 Accessories |
操作電腦 Computer |
戴爾電腦 DELL computer |
|
13 |
出廠合格證 Qualified Certificate |
Qualified by TZTEK |
|
|
14 |
工作臺 Worktable |
天準特制工作臺 TZTEK specialized worktable |
|
|
15 |
軟件光盤 Software CD |
軟件光盤一張 Software CD |
|
|
16 |
Warranty Manual |
|
2 儀器特點 Features
2 精準閃測，效率提升10倍以上；
It achieves accurate flash measurement, and makes measuring efficiency promote more than 10 times.
2 采用雙遠心鏡頭，實現Φ100mm大視野測量；
It uses double telecentric lens to implement Φ100mm high coverage measurement.
2 大景深，可在不同高度范圍內實現一次性測量；
With its large depth of field, we can use it at different heights within the one-off measurement.
2 三軸全自動可編程測量，實現大行程測量；
3 Axis automatic programmable measurement can be used to achieve large stroke measurements.
2 可對工件多任務并行測量，極大提高測量效率；
The workpiece can be measured in parallel multi-task , which greatly improves measurement efficiency.
2 400萬像素圖像傳感器，分辨率高；
2 Owing to its 4 megapixels image sensor , it has the high resolution.
2 業內首創坐標系配準功能，簡單易用；
The coordinate registration function which TZTEK originates in the industry is easy to use.
2 精密花崗巖機臺，精度高，穩定性好；
It has precision granite machine table, high accuracy and perfect stability.
2 可移動平臺結構，突破傳統閃測影像儀固定行程的局限；
Using the movable platform structure, it breaks the traditional flash test imager limitations of fixed itinerary.
2 三軸進口精密線性滑軌、精密傳動系統及CNC控制系統；
It possesses three-axis imported precision linear slide , precision transmission and CNC control system.
2 測量結果可輸出Word、Excel、CAD等格式；
Measurement results can be output in Word, Excel, CAD and other formats.
2 配置了豐富的外部接口，可以定制集成到生產線，實現快速在線測量。
Abundant external interfaces are configured so that the device can be customized in a variety of integrated production lines for fast online measurement .
軟件系統 Software System
基本測量功能 Basic Measuring Function
可測幾何量：點、線、圓（最大、最小和平均）、弧、樣條曲線、橢圓、矩形、四邊形、槽、R角、環、間距、距離、點群等。
It can test the geometric element, including point, line, circle, arc, spline, ellipse, rectangle, slot, ring circle ,gap, distance, point list, etc.
構建：中心點、極值點、端點、交點、兩點連線、平行線、垂線、切線、平分線、中心線、合并、輪廓分割、半徑畫圓、三線內切圓、兩線半徑內切圓等。
It can construct centered, endpoint, insect, connect, parallel, perpendicular, tangent, bisect, combine, etc.
影像量測工具：繪圖點、最近邊緣點、聚焦點、圓形框取點、最佳邊緣點、最近點、整體提取、多段提取、紋理分割、多段紋理分割、電子卡尺、快速整理取圓、開放輪廓線、最大閉合輪廓線、最近閉合輪廓線。
Video measuring tools include drawing point, closed point, focus point, pick point by circle, whole pick, multiple pick, edge trace, largest closed contour, nearest closed contour.
形位公差：直線度、圓度、位置度、平行度、垂直度、傾斜度、同心度等。
It can provide tolerance measurement: include straightness, roundness, position, parallelism, perpendicularity, angularity and concentricity, etc.
坐標系：夾具定位坐標系、點線、兩點X、兩點Y、三點、兩線、圖像配準坐標系；平移、旋轉、手工調整坐標系。
Coordinate system: Fixture positioning coordinate system, dotted line, Two points determine the X axis, Two points determine the Y axis, three points, two lines, Image registration system. Translation, rotation, manually adjust the coordinate system.
輸出及數據統計 Output and Data Statistics
可輸出Word、Excel、HTML、TXT報表和AutoCAD文件。
Word, Excel, TXT and AutoCAD formats of output.
支持實時輸出至excel模版，可定制模版。
Real-time output to excel templates , customizable templates.
可以只輸出最后一次任務運行的數據。
You can only output results of the last run of the task.
運行任務時自動生成.rst格式文件，記錄任務運行的詳細信息。
Automatically generated .rst when you run the task, details of the task run record.
可按指定目錄，根據任務名稱自動輸出任務結果至csv文本中，便于同種工件結果的統一分析。
Can specify a directory, the name of the task automatically output the results to a csv text tasks , facilitate unified analysis of the results of the same kinds of artifacts.
SPC統計功能，載入rst文件，可進行有效的品管控制。
SPC statistical function, can control the quality of product effectively.
基元屬性區域，實時顯示當前正在測量的基元數據。
Primitive property area , real-time display primitive data being measured currently.
基元超差區，分類顯示正?；?，超差基元，未測量基元等等。
Primitive error area, classified according to normal primitives, out-of-tolerance primitive, not measured primitives, and so on.
編程與自動化操作 Programming and Automation
可生成任務進行全自動批量測量，并支持自動和手動交互操作。
It can create a task for automatic measurement, and support both automatic and manual interactive operation.
光源實現自動控制，支持自動打光。
Light can be controlled by software and support automatic lighting.
支持同軸光、落射光、輪廓光的各區段自動控制。
Surface light, profile light and coaxial light can be controlled.
特色功能
運動控制：XYZ三軸自動，可靈活控制移動方向，聚焦等。
Motion control：XYZ triaxial automatic control, Control the direction of movement flexible.
圖樣注冊：快速注冊圖像，智能驗證圖樣。用于工件的快速識別和測量。
Pattern register: Quick register pattern, Verify the pattern intelligently, Used for rapid recognition and measurement artifacts.
圖像匹配：注冊圖樣后，可在視野內進行匹配，個數可設置。
Image matching: After the registration pattern, Can be matched in full screen, but the number can be set up.
任務運行：工件移動后，無需手動提取坐標系，通過圖像匹配即可自動測量。
Task run: After the workpiece moving, Don't need to manually extract coordinate system, Automatic measurement by image matching.
圖樣隨任務保存：實現任務的重復使用。
Pattern save with the mission: make sure the task can reuse.
大視野：無需頻繁移動機臺，提高編程和測量的效率。
High coverage:Do not need to moved the machine frequently, Improve the efficiency of programming and measurement.
影像縮放：無需電子變倍，隨意滾動鼠標即可實現圖像的數碼縮放。
Image zooming: Without electronic variable times, image can digital zoom by scroll the mouse at will.
